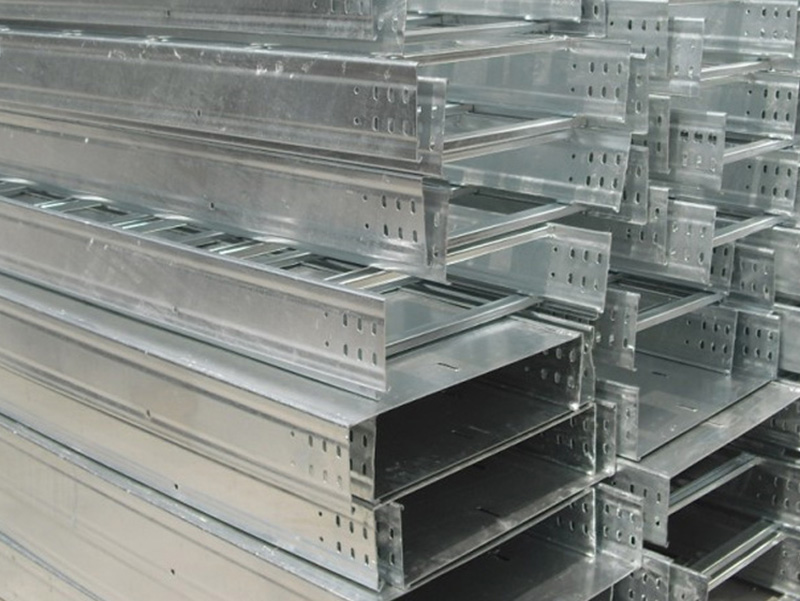

镀锌电缆桥架的安装要注意的事项!

镀锌电缆桥架是一种常见的电力工程配套材料,用于支撑和保护电缆。正确安装镀锌电缆桥架可以提高电缆系统的安全性和可靠性。以下是镀锌电缆桥架的安装步骤及注意事项:

Galvanized cable tray is a common supporting material for power engineering, used to support and protect cables. Proper installation of galvanized cable trays can improve the safety and reliability of cable systems. The following are the installation steps and precautions for galvanized cable trays:

一、安装前准备工作:

1、 Preparation before installation:

1. 确定安装位置:根据电缆系统的需求和布局设计确定电缆桥架的安装位置。

1. Determine the installation position: Determine the installation position of the cable tray based on the requirements and layout design of the cable system.

2. 准备工具和材料:包括螺丝刀、螺丝批、锤子、锯子、镀锌电缆桥架、连接件、螺栓和螺母等。

2. Prepare tools and materials: including screwdrivers, screwdrivers, hammers, saws, galvanized cable trays, connectors, bolts and nuts, etc.

二、 安装步骤:

2、 Installation steps:

1. 进行现场勘测:根据实际情况,确定电缆桥架的长度、宽度和高度等尺寸参数。

1. Conduct on-site survey: Based on the actual situation, determine the size parameters such as length, width, and height of the cable tray.


2. 安装支撑架:根据勘测结果和布局设计,先安装电缆桥架的支撑架。支撑架可以采用钢木结构、壁挂式或地脚式支撑方式。

2. Installation of support frame: Based on the survey results and layout design, install the support frame for the cable tray first. The support frame can adopt steel and wood structures, wall mounted or foot mounted support methods.

3. 组装电缆桥架:根据电缆系统的布局设计,将镀锌电缆桥架按要求连接起来。注意保持桥架的水平和垂直度,确保桥架在安装过程中不会变形。

3. Assembly of cable tray: According to the layout design of the cable system, connect the galvanized cable tray as required. Pay attention to maintaining the level and verticality of the bridge to ensure that it does not deform during installation.

4. 连接固定件:使用螺栓和螺母将桥架连接固定在支撑架上。固定件的数量和位置要根据实际情况和布局设计确定。

4. Connection fixing parts: Use bolts and nuts to connect and fix the bridge to the support frame. The quantity and position of fixed parts should be determined based on the actual situation and layout design.

5. 安装电缆支架:根据电缆系统的布局和需要,安装电缆支架在桥架上。电缆支架的数量和间距要根据电缆的长度和规格来确定。

5. Install cable support: Install the cable support on the bridge according to the layout and needs of the cable system. The number and spacing of cable supports should be determined based on the length and specifications of the cables.

6. 安装电缆槽盖板:根据实际需要,选择合适的电缆槽盖板,将其安装在电缆桥架上,以保护电缆不受外界干扰和损害。

6. Install cable tray cover plate: According to actual needs, select a suitable cable tray cover plate and install it on the cable tray to protect the cable from external interference and damage.

7. 进行调试和验收:安装完成后,对电缆桥架进行调试和验收,确保其安装质量和功能完好。

7. Conduct debugging and acceptance: After installation, conduct debugging and acceptance on the cable tray to ensure its installation quality and functional integrity.

三、注意事项:

3、 Precautions:

1. 安全:在安装过程中,要遵守安全操作规程和操作规范,确保工作人员的人身安全。

1. Safety first: During the installation process, it is necessary to comply with safety operating procedures and specifications to ensure the personal safety of workers.

2. 合理布局:根据实际情况和电缆系统的需要,合理布局电缆桥架和电缆桥架支撑架,确保电缆桥架的稳定和可靠性。

2. Reasonable layout: According to the actual situation and the needs of the cable system, reasonably layout the cable tray and cable tray support frame to ensure the stability and reliability of the cable tray.

3. 选用优质材料:选用优质的镀锌电缆桥架和配套材料,以确保其耐腐蚀性和使用期限。

3. Choose high-quality materials: Choose high-quality galvanized cable trays and supporting materials to ensure their corrosion resistance and service life.

4. 细节处理:在安装过程中,要注意细节处理,比如桥架的水平和垂直度、电缆支架的数量和间距、固定件的牢固性等。

4. Detail handling: During the installation process, attention should be paid to detail handling, such as the level and verticality of the bridge, the number and spacing of cable supports, and the firmness of fixing components.

5. 节约材料:在安装过程中要合理使用材料,避免浪费,减少成本,提高效益。

5. Material conservation: During the installation process, materials should be used reasonably to avoid waste, reduce costs, and improve efficiency.

6. 进行验收:在安装完成后,要进行调试和验收,确保电缆桥架的正常使用。

6. Acceptance: After installation is completed, debugging and acceptance should be carried out to ensure the normal use of the cable tray.

有了山东电缆桥架上面的小总结,希望对广大客户有所帮助,如果有什么不理解的或者寻求帮助的请点击我们的网站:http://www.sdhangfeng.com或者来电咨询,我们会尽全力为您解决

With the summary above the Shandong cable tray, I hope it can be helpful to our customers. If you have any questions or need help, please click on our website: http://www.sdhangfeng.comn Or call for consultation, and we will do our best to solve it for you
