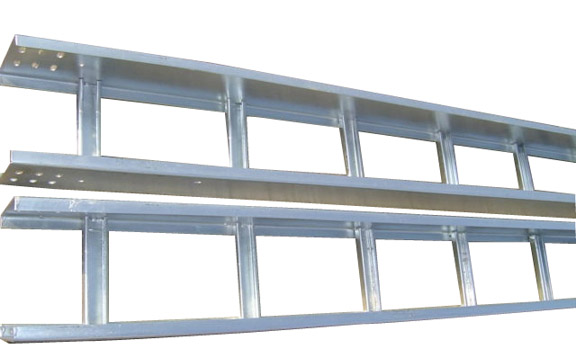

Cable bridge is almost everywhere, the wiring above the construction site will be used, the length of the routine is 2 meters long. We can see these things when we look up in the underground parking lot, where the wires and cables are placed. In engineering construction, there are many wires and cables to be pulled from one place to another, then the cable bridge will be used at this time.

电缆桥架是用来敷设电缆的，一般规格在200mm宽*100mm高及以上称为桥架。原材料都是镀锌钢铁，在钢铁表面镀了一层锌，做一个简单的防锈放腐蚀处理。但是这种镀锌遇水过不了多久就会发白，长期遇水就会生锈，所以还是室内用切记不可户外用。户外用的话要将电缆桥架拿去在做一次热浸锌（热镀锌）表面处理，也就是购买“ 热镀锌电缆桥架”，镀锌层要达到67um以上才可以。或者改为 不锈钢电缆桥架和 铝合金电缆桥架。电缆桥架也可以在表面喷涂，喷涂具有一定的防水防腐蚀能力，也可以喷各种颜色，比较美观。

Cable bridge is used for laying cables. The general specification is 200 mm wide * 100 mm high or above, which is called bridge. The raw materials are galvanized steel. The surface of the steel is coated with zinc to make a simple anti-rust and anti-corrosion treatment. But this kind of galvanizing will turn white soon when it meets water, and rust when it meets water for a long time, so it's important to remember that it can't be used outdoors for indoor use. For outdoor use, the cable bridge frame should be removed for a hot dip galvanizing (hot dip galvanizing) surface treatment, that is, to buy "hot dip galvanizing cable bridge", galvanized layer to reach 67 um or more. Or it can be replaced by stainless steel cable tray and aluminum alloy cable tray. Cable bridge can also be sprayed on the surface, spraying has a certain waterproof and anti-corrosion ability, can also be sprayed in various colors, more beautiful.

电缆桥架安装步骤一：将两根线槽端对端，放在一起摆好。拿好螺丝和连接片。注意戴手套。

The first step of cable bridge installation is to put the ends of two cable grooves on the opposite end and put them together. Hold the screw and connector. Take care to wear gloves.

电缆桥架安装步骤二：将连接片对齐线槽上面的孔，小规格线槽只有一排孔，安装很简单，我徒手示范一下，大家安装的时候要戴手套，免得刮伤。

Step 2: Align the connecting piece to the hole on the groove. The small size groove has only one row of holes. The installation is very simple. I'll show you by hand that when you install it, you should wear gloves to avoid scratches.

电缆桥架安装步骤三：将螺丝放到孔里面拧上去就可以，拧紧一点。要使用扳手!

Installation step 3: Put the screw in the hole and screw it up, tighten it a little. Use a wrench!

这里需要注意：螺丝一定是要从内到外安装，不可以从外到内安装，如果从外到内安装，在穿电缆线的时候，会对电缆线造成损坏和磨损。

Here we need to pay attention to: the screw must be installed from inside to outside, not from outside to inside. If installed from outside to inside, the cable will be damaged and worn when crossing the cable.

好了，就这么简单，这个一般是安装在天花板上吊起来。空中安装注意防范措施，。

Well, it's that simple. It's usually mounted on the ceiling and hung up. Attention should be paid to preventive measures in air installation, safety first.

电缆桥架安装注意事项

Cautions for Installation of Cable Bridge Frame

1.电缆桥架安装要确定方向，方向要从建筑布置、电器管线、空调管线和后续维护方便等因素考虑。并且要尽量沿着建筑墙、房梁、柱子等物体架设。

1. The orientation of cable bridge erection should be determined firstly. The orientation should be considered from building layout, electrical pipeline, air conditioning pipeline and easy maintenance. And try to erect along building walls, beams, columns and other objects.

2.电缆桥架要承载电缆线，所以在设计时要考虑到电缆的重量，看看电缆桥架能不能承受这个重量，支架的安装也要根据承重来设计。

2. Cable bridge should bear cable, so the weight of cable should be taken into account in the design to see if the cable bridge can bear this weight, and the installation of the bracket should also be designed according to the load.

3.桥架的宽度要能将全部电缆放进去，所以宽度应该从电缆直径、电缆数量、电缆间距等数据综合考虑。

3. The width of the bridge should be able to put all the cables in it, so the width should be considered comprehensively from the cable diameter, the number of cables, the distance between cables and other data.

4.根据安装场所设计电缆桥架的安装方式。安装方式有悬吊式、侧壁式、直立式还有混合式，哪种方法合适就可以用哪种方法来安装，并没有统一的规定。

4. Design the installation mode of cable bridge according to the installation site. Installation methods include suspension type, side wall type, vertical type and hybrid type, which method is the most suitable can be installed with which method, there is no uniform regulation.
