教你五招不会选错汇线桥架

教你五招不会选错汇线桥架
Teach you five strokes, never choose the wrong line bridge.
汇线桥架作为布线工程的一个配套项目,由于目前尚无专门的规范指导,各生产厂家的标准类型又缺少通用性,为了到达用户满意的产品规范咱们必须同客户肩并肩地共享经历、信息、许诺、方针,以合作关系开发优异产品。
As a supporting project of wiring project, the bridge of Hui line is lack of specifications and guidance, and the standard type of each manufacturer is lack of universality. In order to reach the customer's satisfaction, we must share experiences, information, promises, policies with customers side by side, so as to develop excellent products in a cooperative relationship.
1断定方向:依据修建平面布置图,结合空调管线和电器管线等设置状况,便利修理,以及电缆路由的疏密来断定汇线桥架的佳路由,在室内,尽可能沿修建物的墙、柱、梁及楼板架起,如需使用综合管廊架起时,则应在管道一侧活上方平行架起,并考虑引下线盒分支线尽量防止穿插,如无其他管架借用,则需自建立(支)柱。
1. Determine the direction: According to the plan of the building, combined with the air-conditioning pipeline and electrical pipeline settings, convenient repair, as well as the density of cable routes to determine the best route of the junction line bridge, indoors, as far as possible along the building walls, columns, beams and floors erected, if need to use integrated pipe gallery erection, should be in the pipeline One side should be erected in parallel with the upper side, and the branch line of the lead-down box should be considered to prevent the insertion as far as possible. If no other pipe rack is borrowed, the post should be set up by itself.

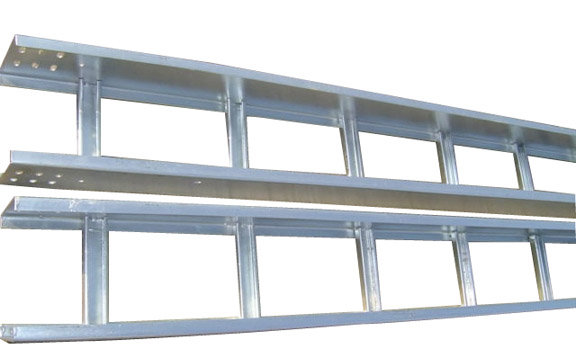

山东电缆桥架
2.荷载核算:核算汇线桥架主干线纵断面上单位长度的电缆分量。
2. load Accounting: calculate the cable length of the length of the main line of the bridge.
3.汇出汇线桥架平、剖面图,部分部位还应汇出空间图,开列资料表。
3. remit the flat and section drawings of the transmission line bridge. Some parts should also export the space map and list the data.
4.断定安装方法:依据场所的设置条件断定桥架的固定方法,挑选悬吊式、直立式、侧壁式或是混合式,连接件和紧固件一般是配套供给,此外,依据桥架结构挑选相应的改版。
4. Determine the installation method: According to the setting conditions of the site to determine the fixing method of the bridge, select suspension, vertical, sidewall or mixed type, connectors and fasteners are generally matching supply, in addition, according to the bridge structure to select the corresponding revision.
5.断定桥架的宽度:依据布放电缆条数、电缆直径及电缆的距离来断定汇线桥架的类型、标准,托臂的长度,支柱的长度、距离,桥架的宽度和层数。
5. Determine the width of the bridge: According to the number of discharge cables, cable diameter and cable distance to determine the type of bridge, standard, arm length, the length of the pillar, the width of the bridge and the number of layers.
济南航丰实业有限公司,对山东电缆桥架感兴趣的朋友可以关注我们http://www.sdhangfeng.com,更多精彩内容知识敬请期待
Jinan Hanfeng Industry Co., Ltd., friends interested in Shandong cable bridge can pay attention to our http://www.sdhangfeng.com, more exciting content knowledge please look forward to
