Four main categories of cable bridge

电缆桥架分为四大类：梯级式电缆桥架、托盘式电缆桥架、槽式电缆桥架、大跨距电缆桥架

Cable bridge is divided into four categories: cascade cable bridge, pallet cable bridge, slot cable bridge, long-span cable bridge

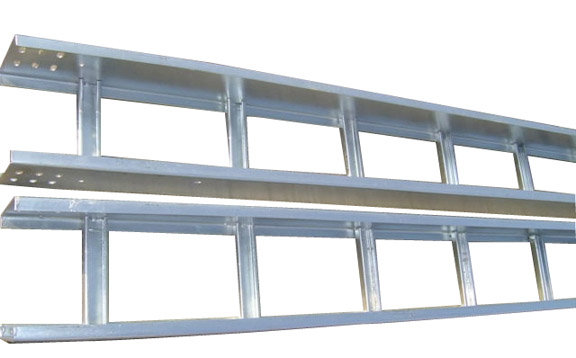

1、梯级式电缆桥架

1. Cascaded cable tray

CQ1-T型梯级式电缆桥架是依据国内外有关材料而改善规划的。它具有重量轻、成本低、造型别具、装置便利、散热、透气好等长处。他适用于一般直径较大电缆的敷设，适合于高、低压动力电缆的敷设。

The CQ1-T cascaded cable tray is based on the relevant materials at home and abroad to improve the planning. It has the advantages of light weight, low cost, styling, convenient installation, heat dissipation and good ventilation. It is suitable for laying of large diameter cables and suitable for laying of high and low voltage power cables.

2、托盘式电缆桥架

2. Tray type cable tray

托盘式电缆桥架是石油、化工、轻工、电讯等方面使用广泛的一种。它具有重量轻、载荷大、造型美

Tray type cable tray is the most widely used in petroleum, chemical industry, light industry, telecommunications and so on. It has light weight, large load and beautiful shape.

电缆桥架(20张)观、结构简略、装置便利等长处。它即适用于动力电缆的装置，也适合于操控电缆的敷设。

Cable bridge (20 pieces) concept, simple structure, convenient installation and other advantages. It is suitable for the installation of power cables and the laying of control cables.

3、槽式电缆桥架

3, trough cable tray

槽式电缆桥架是一种全封闭型电缆桥架。它适用于敷规划算机电缆、通讯电缆、热电偶电缆及其他高活络体系的操控电缆等。它对操控电缆的屏蔽搅扰和重腐蚀中环境电缆的防护都有较好的作用。

The trough cable tray is a fully enclosed cable tray. It is most suitable for laying computer cables, communication cables, thermocouple cables and other high active control cables. It plays a good role in controlling the shielding and disturbing of cables and protecting the environment cables in heavy corrosion.

4、大跨距电缆桥架

4. Long span cable bridge

梯级式汇线桥架具有良好的通风功能，不防尘、不防搅扰。槽式、托盘式汇线桥架具有防尘。

The cascade type bridge has good ventilation function, no dust-proof and no disturbance. The trench and pallet type transmission line bridge has dust-proof.
